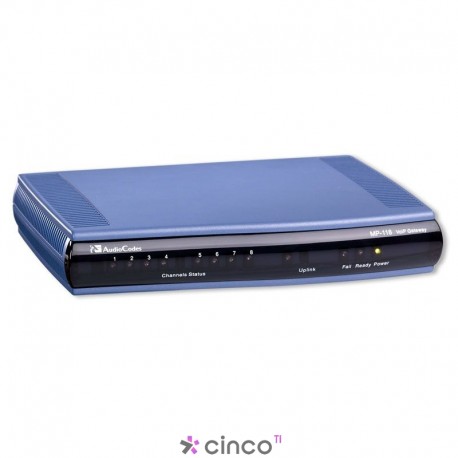

Adaptador para Telefonia IP Audiocodes MediaPack 118 MP118/8S/SIP

Interfaces

Voice Ports: 8 Ports
Telephone Interfaces: FXS, RJ11
Lifeline: Automatic cut through of a single analog line
Network Interface: 10/100 BASE-TX, RJ45
Indicators: Channel status and activity LEDs

Voice, Fax, Modem

Voice over Packet Capabilities: G.168-2004 compliant Echo Cancellation, VAD, CNG, Dynamic programmable Jitter Buffer, modem detection and auto-switch to PCM
Voice Compression: G.711, G.723.1, G.726, G.729A
Fax over IP: T.38 compliant, Group 3 fax relay up to 14.4 kbps with automatic switching to PCM or ADPCM
QoS: Diffserve, TOS, 802.1 P/Q VLAN tagging
IP Transport: RTP/RTCP per IETF RFC 3550 and 3551 PPPoE, ThruPacketTM (aggregated RTP streams of several channels for saving network bandwidth)

Signaling

- Signaling FXS, FXO Loop-start
- In-band Signaling DTMF (TIA 464B, User-defined and call progress tones
- Control MGCP (RFC 2- 05), H.323 (V4), SIP (RFC 3261)
- Provisioning BootP, DHCP, TFTP and HTTP for Automatic Installation, Remote management using Web browser, EMS (Element Management System), Syslog support, RS-232 for basic configuration, Voice Menu using touch tone phone for basic configuration

Security

Media: SRTP
Control: H.235, IPSEC, TLS/SIPS
Management HTTPS, Access List, IPSEC

Physical

Power: 100-240 V AC/50-60 Hz or -48V DC*
Environmental Operational: 5 to 40o C 41 to 104o F, Storage: -25 to 85o C -13 to 185o F, Humidity: 10 to 90% non-condensing
Dimensions (HxWxD): 42x172x220mm
Mounting Rack: mount, Table top, Wall mount

Additional Features

Message Waiting Indication: Applying 100V DC on line for lighting bulb in handset
High Availability: PSTN Fallback: Support of PSTN fallback due to Power failure of if the IP connection is down or customer defined if IP QOS thresholds, Supported in all ports of Mixed FXS/FXO and in first port of MP-114/FXS and MP- 118/FXS using special Lifeline cable, Stand Alone Survivability (SAS): Supports SAS of up to 30 SIP users (UA) per MediaPack
Short and Long Haul: REN3: Up to 9Km (24 AWG line)
Caller ID: Bellcore GR-30-CORE Type 1 using Bell 202 FSK modulation, ETSI Type 1, NTT, Denmark, India, Brazil, British and DTMF ETSI CID (ETS 300-659-1)
Polarity Reversal / Wink: Immediate or smooth to prevent erroneous ringing
Metering Tones: 12/16 KHz sinusoidal bursts, Generation on FXS
Distinctive Ringing: By frequency (15-100 Hz) and cadence patterns
Message Waiting Indication: DC voltage generation (TIA/EIA-464-B), V23 FSK data, Stutter Dial Tone
Outdoor Protection: Over-voltage protection and surge immunity
