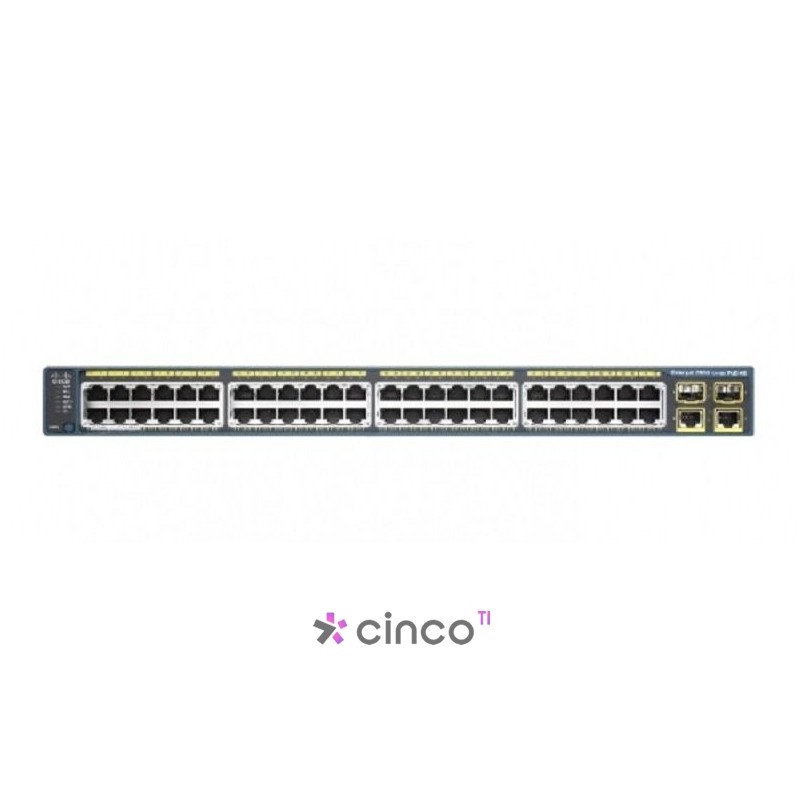

Cisco Catalyst 2960XR-48TS-I - switch - 48 ports - managed - desktop, rack Ver maior

* Imagem meramente ilustrativa

Cisco Catalyst 2960XR-48TS-I - switch - 48 ports - managed - desktop, rack

Cisco

Atualizado em: 02/02/2015

WS-C2960XR-48TS-I

Novo

Switch
L3
managed
48 x 10/100/1000 + 4 x SFP
desktop
rack-mountable

Mais detalhes

Orçamento ainda vazio

Ficha técnica

Memória512MB
Número de Portas48
Velocidade das Portas10/100/1000
GerenciávelSim
Base da fibraTX
VoltagemBivolt

Mais informações

Environmental Parameters
Humidity Range Operating: 10 - 95% (non-condensing)
Humidity Range Storage: 10 - 95% (non-condensing)
Max Operating Temperature: 113 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 23 °F
Min Storage Temperature: -13 °F
Header
Brand: Cisco
Compatibility: PC
Manufacturer: Cisco Systems
Model: 2960XR-48TS-I
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Connector Type: RJ-45
Qty: 48
Type: 1000Base-T
Qty: 1
Type: Console
Comments: Management
Connector Type: Type B
Type: Mini-USB
Connector Type: Type A
Qty: 2
Type: USB
Type: 100Base-TX
Comments: Uplink
Connector Type: SFP
Qty: 4
Miscellaneous
Authentication Method: Kerberos , RADIUS , Secure Shell (SSH) , TACACS+
Compliant Standards: AS/NZS 60950-1 , BSMI CNS 13438 Class A , CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 Second Edition , EN 300386 , EN 60950-1 Second Edition , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC CFR47 Part 15 , ICES-003 Class A , IEC 60950-1 Second Edition , KN22 Class A , KN24 , RoHS , RoHS 2011/65/EU , UL 60950-1 Second Edition , VCCI Class A
Height (Rack Units): 1
MTBF: 438,130 hours
Product Color: Gray
Rack Mounting Kit: Included
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1AX , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3ah , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z
Features: Access Control List (ACL) support , ARP support , Auto-negotiation , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Broadcast Storm Control , Cisco EnergyWise technology , Cisco Fast EtherChannel , Cisco FlexStack Plus , Cisco Gigabit EtherChannel , Class of Service (CoS) , DHCP relay , DHCP snooping , DiffServ Code Point (DSCP) support , DiffServ support , Dynamic ARP Inspection (DAI) , Dynamic Trunking Protocol (DTP) support , Energy Efficient Ethernet , Full duplex capability , Hot Standby Router Protocol (HSRP) support , IGMP filtering , IGMP snooping , IPv6 support , Jumbo Frames support , Layer 2 switching , Layer 3 load balancing , Link Aggregation Control Protocol (LACP) , MAC Address Notification , MLD snooping , Multicast Storm Control , Multicast VLAN Registration (MVR) , Multiple Spanning Tree Protocol (MSTP) support , NetFlow , Per-VLAN Rapid Spanning Tree (PVRST) , Port Aggregation Protocol (PAgP) support , Quality of Service (QoS) , RADIUS support , Rapid Per-VLAN Spanning Tree Plus (PVRST+) , Rapid Spanning Tree Protocol (RSTP) support , Remote Switch Port Analyzer (RSPAN) , Shaped Round Robin (SRR) , Spanning Tree Protocol (STP) support , Strict Priority Queuing (SPQ) , Syslog support , Trivial File Transfer Protocol (TFTP) support , Uni-Directional Link Detection (UDLD) , Unicast Reverse Path Forwarding (URPF) , Unicast Storm Control , VLAN support
Form Factor: Desktop , Rack-mountable
Jumbo Frame Support: 9216 bytes
Manageable: Yes
Max Units In A Stack: 8
Ports Qty: 48
Remote Management Protocol: CLI , HTTP , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2 , SNMP 2c , SNMP 3 , SSH , Telnet , TFTP
Routing Protocol: HSRP , OSPF , OSPFv3 , PIM-DM , PIM-SM , PIM-SSM , Policy-based routing (PBR) , RIP-1 , RIP-2 , RIPng , VRRP
Stackable: Stackable
Status Indicators: Link activity , Port duplex mode , Port status , Port transmission speed , System
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Power Device
Frequency Required: 50/60 Hz
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 250 Watt
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Type: Internal power supply
Processor
Clock Speed: 600 MHz
Service
Support Details Full Contract Period: Lifetime
Support Details Service Included: Advance parts replacement
Support Details Type: Limited warranty
Support Details Full Contract Period: 90 days
Support Details Service Included: Consulting
Support Details Type: Technical support
Service & Support Details
Response Time: Next business day
Slot Provided
Free Qty: 1
Total Qty: 1
Type: Stacking Module slot
Software
Type: Cisco IOS IP Lite
Dimensions & Weight
Depth: 16.1 in
Height: 1.8 in
Weight: 13.2 lbs
Width: 17.5 in
Service & Support
Type: Limited lifetime warranty
Capacity
Type: Active VLANs
Value: 1023
Flash Memory
Installed Size: 128 MB
Performance
Type: Switching capacity
Value: 216 Gbps
Type: Forwarding performance (64-byte packet size)
Value: 107.1 Mpps
Ports
Qty: 48
Type: 10/100/1000
Ports (2nd)
Qty: 4
Type: SFP (mini-GBIC)
RAM
Installed Size: 512 MB
