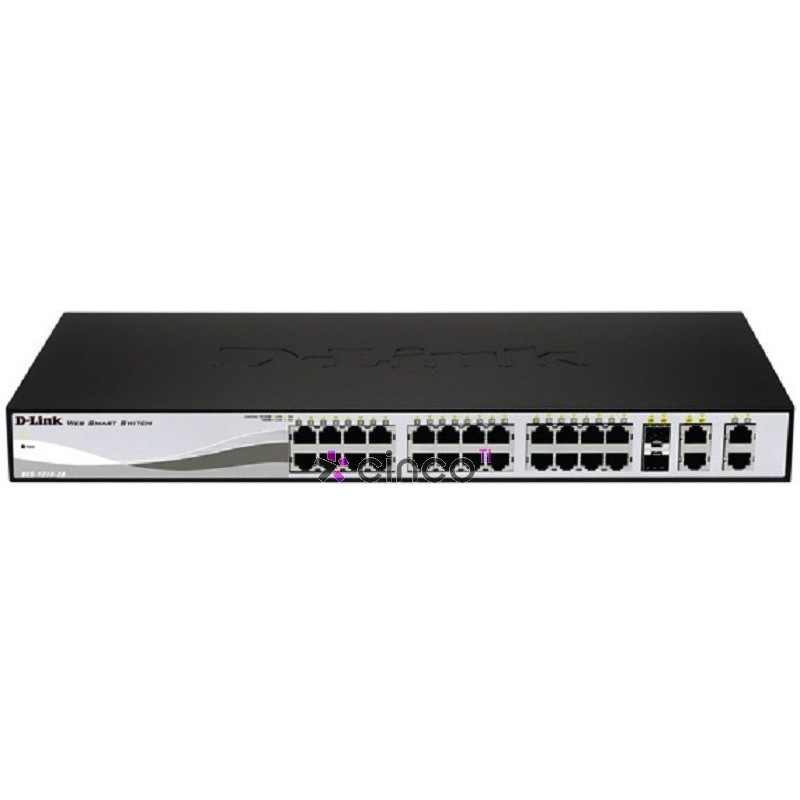

Web Smart 24-Port 10/100 Switch with (2) 10/100/1000BASE-T Ports and 2 Combo SFP Slots Ver maior

* Imagem meramente ilustrativa

Web Smart 24-Port 10/100 Switch with (2) 10/100/1000BASE-T DES-1210-28

D-Link

Atualizado em: 19/10/2021

DES-1210-28

Novo

Orçamento ainda vazio

Ficha técnica

VoltagemBivolt
VLANSim

Mais informações

Number of Ports
24 10/100Mbps
2 10/100/1000BASE-T
2 combo 10/100/1000BASE-T/SFP
Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 (twisted-pair copper)
Auto-negotiation
IEEE 802.3x Flow Control
Network Cables
UTP Cat.5, Cat.5e (100m max)
EIA/TIA-568 100-ohm STP (100m max)
Full/Half Duplex
Full/half duplex for 10/100Mbps speeds
Full duplex for Gigabit speed
Media Interface Exchange Auto MDI/MDI-X adjustment for all twisted pair ports
Transmission Method Store-and-forward
MAC Address Table 8K entries per device
MAC Address Update
Up to 256 static MAC entries
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate 9.5Mpps
RAM Buffer 512KB per device
AC Input 100 to 240 VAC 50/60 internal universal power supply
Maximum Power Consumption 17.6W
Temperature
Operating: 32° to 104°F (0° to 40°C)
Storage: 14° to 158° F (-10° to 70° C)
Dimensions 17.3in x 8.3in x 1.7in
(440mm x 210mm x 44mm)
19-inch standard rack mounting width, 1U height
Weight 5.73 lbs (2.6kg)
MTBF 419,467 hours
Diagnostic LEDs
Power (per device)
Link/Activity/Speed (per 10/100/1000Mbps port,per 10/100Mbps port, per SFP port)
Emission (EMI) FCC Class A, CE Class A, VCCI Class A, C-Tick
Safety cUL, LVD
L2 Features
MAC Address Table 8K
Flow Control
802.3x Flow Control
HOL Blocking Prevention
IGMP Snooping
IGMP v1/v2 Snooping
Supports at least 64 static multicast addresses
Supports IGMP Snooping Querier
Supports 256 IGMP groups
IGMP per VLAN
Spanning Tree Protocol
802.1D STP
802.1w RSTP
Loopback Detection Yes
802.3ad Link Aggregetion 8 groups per device/8 ports per group
Port Mirroring One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
Cable Diagnostics Yes
Configurable Auto MDI/MDI-X Yes
VLAN
802.1Q 2003 Edition
VLAN Group Max 256 static VLAN groups, max 4094 VID
Management VLAN Supports 1 Management VLAN
Asymmetric VLAN Yes
Auto Voice VLAN Max. 10 user defined OUI, Max. 8 default OUI
Auto Surveillance VLAN Yes
QoS (Quality of Service)
802.1p Quality of Service 4 Queues per port
Queue Handling Strict, Weighted Round Robin (WRR)
CoS based on 802.1p Priority Queues, DSCP
Bandwidth Control Port-based (Ingress/Egress, min. granularity 64 Kb/s)
Access Control List
Maximum profiles 50
Maximum rules shared by 240
ACL based on MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), VLAN ID, 802.1p
Priority, DSCP
ACL Actions Permit, Deny
Security
802.1X Port-based Access Default 802.1X forwarding
Port Security Supports up to 64 MAC addresses per port
Traffic Control Broadcast/Multicast/Unicast Storm Control
Static MAC Supports 256 Static MAC entries
D-Link Safeguard Engine Yes
DHCP Server Screening Yes
ARP Spoofing Prevention Max 64 entries
SSL v1/v2/v3
MIB
MIB 1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB, Power Ethernet MIB1, LLDP-MIB1
Management
Web-based GUI Supports IPv4
Compact CLI through Telnet Yes
Telnet Server Maximum connection is 4, Supports IPv4
TFTP Client Supports IPv4
SNMP Supports v1/v2/v3
SNMP Trap Yes
Trap for SmartConsole Utility Yes
System Log Max. 500 log entries, supports IPv4 log server
BootP/DHCP Client Yes
Time Setting SNTP
