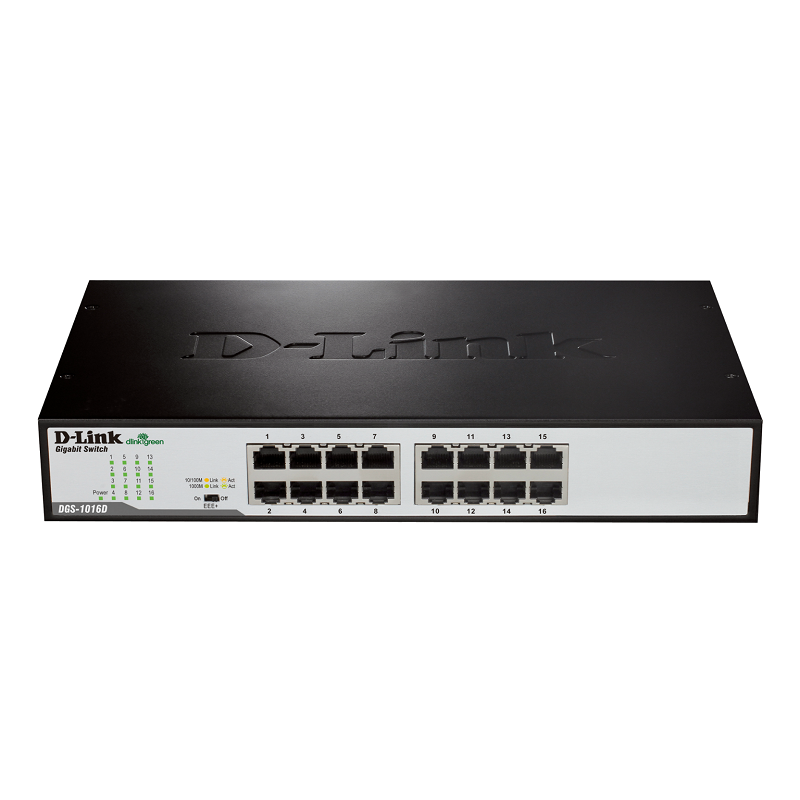

Switch D-Link Desktop 10/100/1000 16 Portas não gerenciável Ver maior

* Imagem meramente ilustrativa

Switch D-Link Desktop 10/100/1000 16 Portas não gerenciável

D-Link

Atualizado em: 20/10/2021

DGS-1016D

Novo

Orçamento ainda vazio

Ficha técnica

Número de Portas16
Velocidade das Portas10/100/1000
GerenciávelNão
VoltagemBivolt

Mais informações

Key Features
ƒInnovative 2nd Generation D-Link Green Technology
ƒInexpensive Gigabit solution for SOHO/SMB
ƒSilent, fanless design
ƒAuto MDI/MDI-X crossover for all ports
ƒStore-and-forward switching scheme
ƒFull/half-duplex for Ethernet/Fast Ethernet speeds
ƒIEEE 802.3x Flow control
ƒSupports 9,600Bytes Jumbo Frames
ƒSupports IEEE 802.1p QoS (4 Queues, Strict Mode)
ƒSupports cable Diagnostics Function
ƒRoHS compliant
ƒPlug-and-play installation
Number of Ports
ƒDGS-1016D: 16 Gigabit ports
Switching Fabric
ƒDGS-1016D: 32 Gbps switching fabric
Standards
ƒIEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
ƒIEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ƒIEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ƒANSI/IEEE 802.3 NWay auto-negotiation
ƒIEEE 802.3x Flow control
ƒIEEE 802.1p QoS (4 queues, strict mode)
Protocol
ƒCSMA/CD
Data Transfer Rates
ƒEthernet:
ƒ10Mbps (half duplex)
ƒ20Mbps (full duplex)
ƒFast Ethernet:
ƒ100Mbps (half duplex)
ƒ200Mbps (full duplex)
ƒGigabit Ethernet:
ƒ2000Mbps (full duplex)
Topology
ƒStar
Network Cables
ƒ10BASE-T:
ƒCTP CAT 3, 4, 5/5e (100 m max.)
ƒEIA/TIA-586 100-ohm STP (100 m max.)
ƒ100BASE-TX, 1000BASE-T:
ƒUTP CAT 5/5e (100 m max.)
ƒEIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
ƒAuto MDI/MDI-X adjustment for all ports
Led Indicators
ƒPer port:
ƒ100Mbps/1000Mbps speed
ƒLink/Activity
ƒPer device:
ƒPower
Transmission Method
ƒStore-and-forward
MAC Address Table
ƒ8K entries per device
MAC Address Learning
ƒAutomatic update
Packet Filtering/Forwarding Rates (Half Duplex)
ƒEthernet: 14,880 pps per port
ƒFast Ethernet: 148,800 pps per port
ƒGigabit Ethernet: 1,488,000 pps per port
RAM Buffer
ƒ512KBytes per device
Acoustics
ƒ0 dB
Power Consumption
ƒDGS-1016D: 13.4W maximum
Operating Temperature
ƒ0˚ to 40˚ c (32˚ to 104˚ F)
Storage Temperature
ƒ-10˚ to 70˚ c (14˚ to 158˚ F)
Operating Humidity
ƒ10% to 90% RH non-condensing
Storage Humidity
ƒ5% to 90% RH non-condensing
Device Dimensions (W x D x H)
ƒ280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches)
Certifications
ƒFCC Class A
ƒICES-003 Class A
ƒCE Class A
ƒC-Tick Class A
ƒVCCI Class A
ƒUL/cUL
ƒCB
MTBF
ƒDGS-1016D: 859,898 hours
