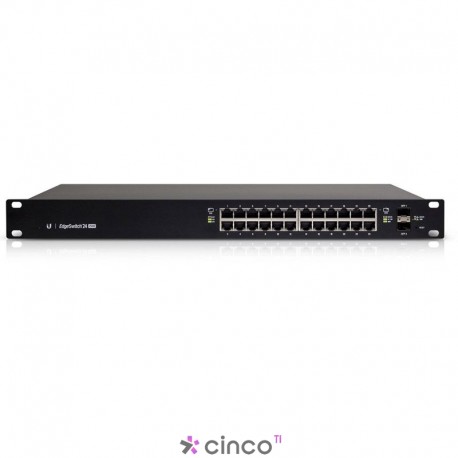

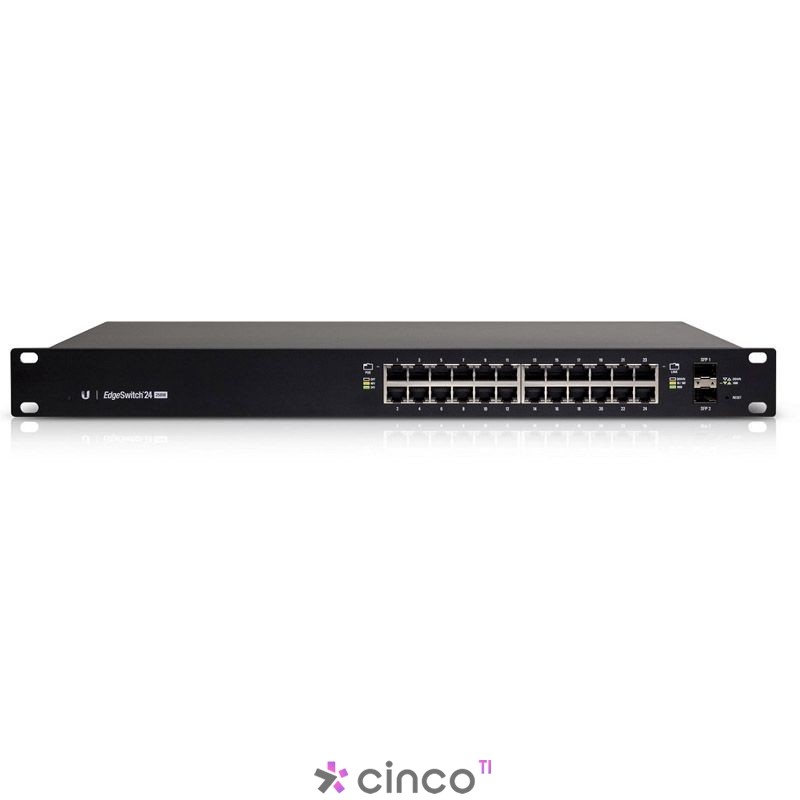

EdgeSwitch Ubiquiti 24 Portas 500 Watts PoE

Total Non-Blocking Throughput:    26 Gbps
Max Power Consumption:    500 W
Power Method:    100-240 VAC / 50-60 Hz, Universal Input
Power Supply:    AC/DC, Internal, 500 W DC AC/DC, Internal, 500 W DC
LEDs:
- RJ45 Data Ports
PoE, Speed/Link/Activity

- SFP Data Ports
Speed/Link/Activity
LAN Ports:
- 24 x 10/100/1000 Mbps RJ45 Ethernet Ports
- 2 x 1 Gbps SFP Ethernet Ports
Management Interface:    Ethernet in/out band
Certifications:    CE, FCC, IC
Rackmount:    Yes, 1U high
ESD/EMP Protection:    Air: ±24 kV, Contact: ±24 kV
Operating Temperature:    23 to 104°F / -5 to 40°C
Operating Humidity:   5 to 95% non-condensing
Shock and Vibration:    ETSI300-019-1.4 Standard
PoE:
- PoE Interfaces
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)

- Max. PoE+ Wattage per Port by PSE
34.2 W

- Voltage Range 802.3at Mode
50-57 V

- Max. Passive PoE Wattage per Port
17 W

- 24 V Passive PoE Voltage Range
20-27 V
Dimensions:    19.10 x 1.75 x 11.24" / 485.04 x 44.45 x 285.60 mm
Weight:    8.16 lb / 3.70 kg

Atualizado em 26/11/2014.
