Switch Gerenciável 24 Portas Gigabit L2+ Unified Wireless PoE, 4 Combo SFP Ver maior

* Imagem meramente ilustrativa

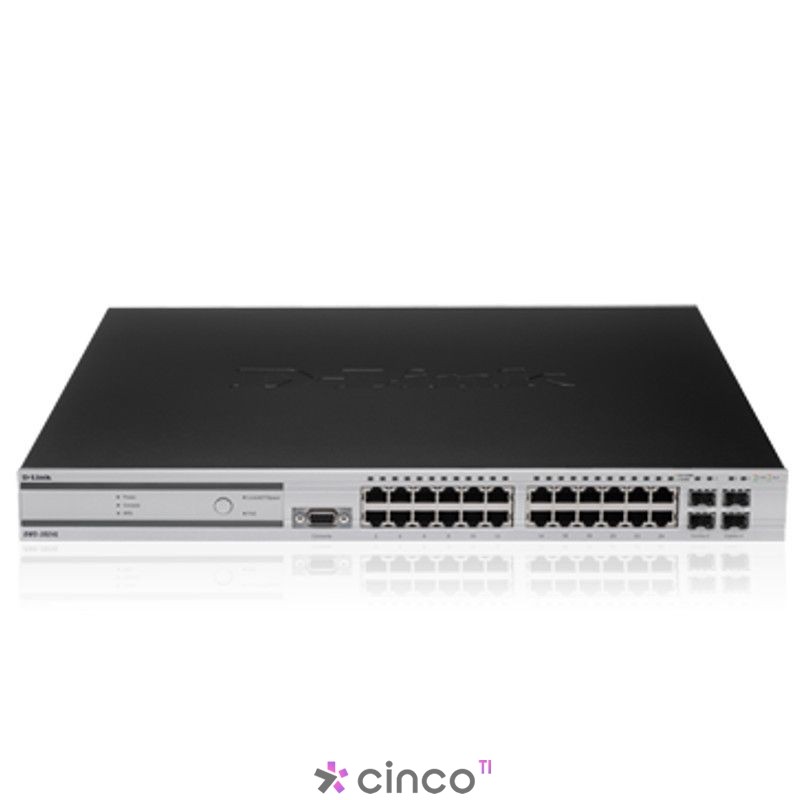

Switch Gerenciável 24 Portas Gigabit L2+ Unified Wireless PoE, 4 Combo SFP DWS-3024L

D-Link

Atualizado em: 31/08/2015

DWS-3024L

Novo

Orçamento ainda vazio

Ficha técnica

Número de Portas24
Velocidade das Portas10/100/1000
GerenciávelSim
EmpilhávelNão
Portas de fibra4

Mais informações

Specifications
Device Interfaces
• 24 10/100/1000BASE-T Gigabit Ports With Integrated 802.3af PoE
• 4 Combo SFP Ports
• RS-232 Console Port
MAC Address Table
• 8k
Switching Capacity
• 48Gbps
Maximum Forwarding Rate
• 35.71Mpps
Forwarding Method
• Store and Forward
Packet Buffer Memory Size
• 750KB
802.3af Power over Ethernet (PoE)
• 15.4W Per Port
• 370W Total Voltage Output
• Auto Disabled If Port Current Exceeds 350mA
Number of VLANs Per Device
• 3,965
Quality of Service (QoS)
• 802.1p Priority Queues (Up to 8 Queues per Port)
• CoS Based on: Switch Port, VLAN, DSCP, TCP/UDP Port, TOS, Destination/Source IP Address, Destination/Source MAC Address
• Bandwidth Control: Granularity of 1% link speed
Spanning Tree
• 802.1D Spanning Tree
• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree
Security
• RADIUS Authentication for Management Access
• TACACS+ Authentication for Management Access
• SSH v1, v2
• SSL v3
• Port Security:
• 20 MAC Addresses per Port
• Trap Violation Notification
• 802.1x Port-Based Access Control
• Denial of Service Protection
• Broadcast Storm Control: Granularity of 1% of link speed
L3 Features
• IPv4 Static Route
• Up to 128 Static Routes
• Floating Static Route
• VRRP
Access Control Lists (ACL)
• Based on: Switch Port, MAC Address, 802.1p, Priority Queues, VLAN, Ethertype, DSCP, IP Address, Protocol Type, TCP/UDP Port
Jumbo Frame Support
• Up to 9KB
IGMP Snooping
• 1K Multicast Groups
Flow Control
• 802.3x Standard in Full Duplex Mode
• Back Pressure in Half Duplex Mode
Port Mirroring
• Supports one-to-one or many-to-one
Link Aggregation
• Supports up to 32 8-port groups
Web-based Graphic User Interface (GUI)
• Compatible with Internet Explorer®, Netscape®, Mozilla®, Firefox®, Opera®, Safari® browsers
Wireless
WLAN Management Capability
• Up to 24 APs (Directly Connected and Indirectly Connected Through LAN Switch)
• Up to 512 Wireless Users
Roaming
• Fast Roaming / Intra-Switch Roaming / Inter-Subnet Roaming
Access Control & Bandwidth Management
• Up to 16 SSID per AP (8 SSID per RF Frequency Band)
• AP Load Balancing
AP Management
• Auto-Discovery
• Remote Reboot
• Monitoring: List Managed AP, Rogue AP, Authentication Failed AP
• Client Monitoring: List Clients Associated with Each Managed AP
• Ad-hoc Clients Monitoring
• Authentication Supporting Local Database and External RADIUS Server
• Centralized RF/Security Policy Management
WLAN Security
• WPA Personal/Enterprise
• WPA2 Personal/Enterprise
• 64/128/152-bit WEP Data Encryption
• Wireless Station and AP Classification (Based on RF Channel, MAC Address, SSID, Time)
• Rogue and Valid AP Classification Based on MAC Address
• Encryption Type Support: WEP, WPA, Dynamic WEP, TKIP, AES-CCMP, EAP-TLS, TTLS, PEAP-GTC, PEAP-MS-CHAPv2, EAP-FAST
Interface Options
RJ-45
• 24 10/100/1000BASE-T Gigabit Ports with Integrated 802.3af PoE
SFP Ports
• 4
Diagnostic LEDs
• Per Device: Power, Console, RPS
• Per 10/100/1000BASE-T Port: Link/Activity/Speed, PoE Mode
• Per SFP Slot: Link/Activity
Network Management
In & Out of Band
• Web-Based GUI
• Telnet Server: Up to 5 Sessions
• Telnet Client
• TFTP Client
• Multiple Configuration Files
• BOOTP/DHCP Client
• SNTP
• Dual Images
• CLI
• SNMP v1, v2c, v3
• RMON v1: 4 Groups (Statistics, History, Alarms, Events)
• DHCP Server
• SYSLOG
Network Protocol and Standards
IEEE
• 802.1q VLAN Tagging, GVRP, 802.1p Quality of Service, 802.1D Spanning Tree Protocol, 802.1w Rapid Spanning Tree Protocol, 802.1s Multiple Spanning Tree Protocol, 802.3x Flow Control, 802.3ad Link Aggregation, 802.3af Power over Ethernet, 802.11a/b/g, 802.1x Port-Based Access Control
IETF
• RFC 1157 SNMP, RFC1213 MIB-II, RFC1493 Bridge MIB, RFC1907 SNMPv2 MIB, RFC1757/2819 RMON MIB, RFC1643/2358/2665 Ether-like MIB, RFC2674 802.1p MIB, RFC2233/2863 IF MIB, RFC2618 RADIUS Authentication Client MIB, RFC2620 RADIUS Accounting Client MIB, RFC 3768, RFC 4251
Wi-Fi
• Helps ensure interoperability with Wi-Fi® Certified products from other vendors
Electrical & Emissions Summary
Emissions
• FCC Class A, VCCI, C-Tick, ICES-003, CE
Safety Compliance
• UL/cUL, CB
AC Input Power
• 100 to 240 VAC, 50/60 Hz Internal Universal Power Supply
Maximum Power Consumption
• 450 Watts (with all PoE ports in operation)
Heat Dissipation
• 1535.49 BTU/hr
Ventilation DC Fans
• 4 40 x 40 mm DC Fans
Redundant Power Supply
• Connector for Optional External DPS-600
Physical & Environmental
Temperature
• Operating: 32° to 104°F (0° to 40°C)
• Storing: 14° to 158°F (-10° to 70°C)
Humidity
• Operating: 10% ~ 90% Non-condensing
• Storing: 5% ~ 90% Non-condensing)
Dimensions
• 17.2 x 15.3 x 1.7 inches (440 x 389 x 44 mm)
19-inch Standard Equipment Rack Mount Width, 1U Height
Weight
• 13.2 lbs (6kg)


Atualizado em 10/01/2014.

Condições

*  Condição válida para a data de atualização deste produto.
** Preço calculado para empresas do Rio Grande do Sul, com Inscrição Estadual.
*** Consulte incidência de impostos adicionais para seu estado: Protocolo ICMS 21, Substituição Tributária e ICMS - diferencial de alíquota.
**** Consulte desconto especial para pagamento antecipado.
