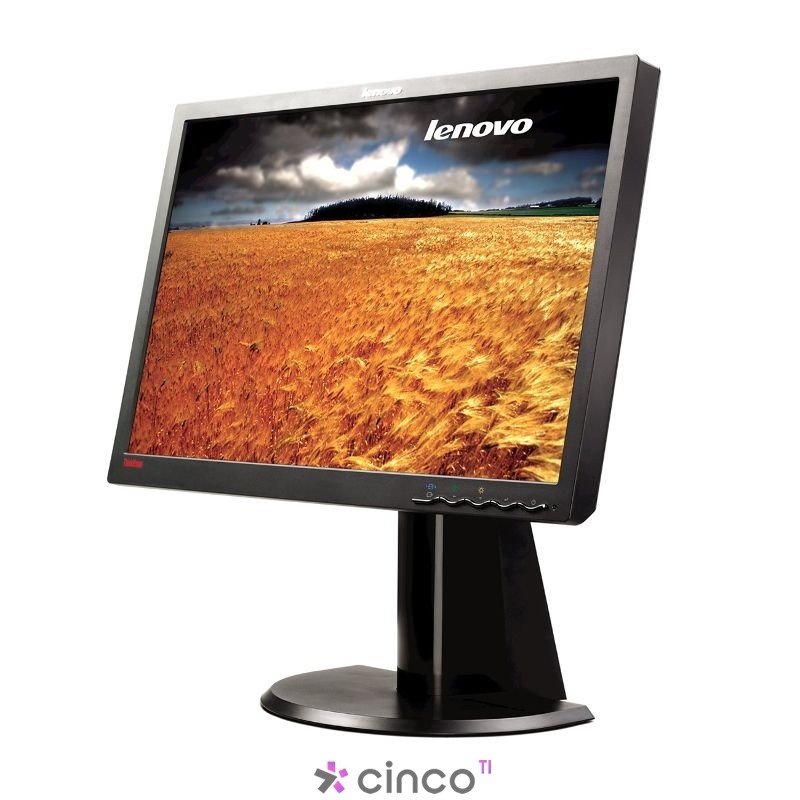

Monitor ThinkVision Lenovo, 22"

Feature

Specification

Monitor Size

22.0 inch (559 mm)

Viewable image size

22-inch (559 mm)

Maximum viewable area

296.1 mm x 473.8 mm

Native resolution

1680 x 1050

Video input

VGA Analog, DVI-D Digital

Contrast ratio (typical)

1000 : 1

Brightness (typical)

250 cd/m2

Colors

16.7 million

Viewing angle (typical)

Horizontal: 160 degrees (at 10:1 contrast ratio)

Vertical: 160 degrees (at 10:1 contrast ratio)

Response time (typical)

5 ms

Pixel pitch

0.282 mm

Signal cable - 15-pin D

2.2 m

Signal cable - DVI-D

2.2 m

SYNC Type

Composite/Separate TTL

SYNC on Green

No

USB input

None

USB output

None

Bezel width (Side)

17.5 mm

Tilt

0 degrees forward

30 degrees backward

Swivel

+/- 45 degrees

Height adjustment

110 mm

Pivot

Yes (graphic card dependent)

User controls

Digital

Lockable controls

Yes

OSD

Yes

OSD languages

8

Preset display modes

22

User defined display modes

20

VESA DDC capable

2B/CI

ISO 13406-Part 2 capable

Yes

Power management capable

Yes - VESA DPMS

Power supply

Universal Voltage (100 to 240 VAC)

Power cord - detached

1.8 meter

JEIDA compliance

Yes

FCC B compliance

Yes

MPR-2 Emission compliance

Yes

MPR-3 Emission compliance

Yes

TCO'03 Environmental Label

Yes

EU Directive 2002/95/EC (RoHS)

Yes

EU Directive 2002/96/EC (WEEE)

Yes
